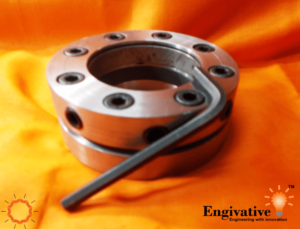

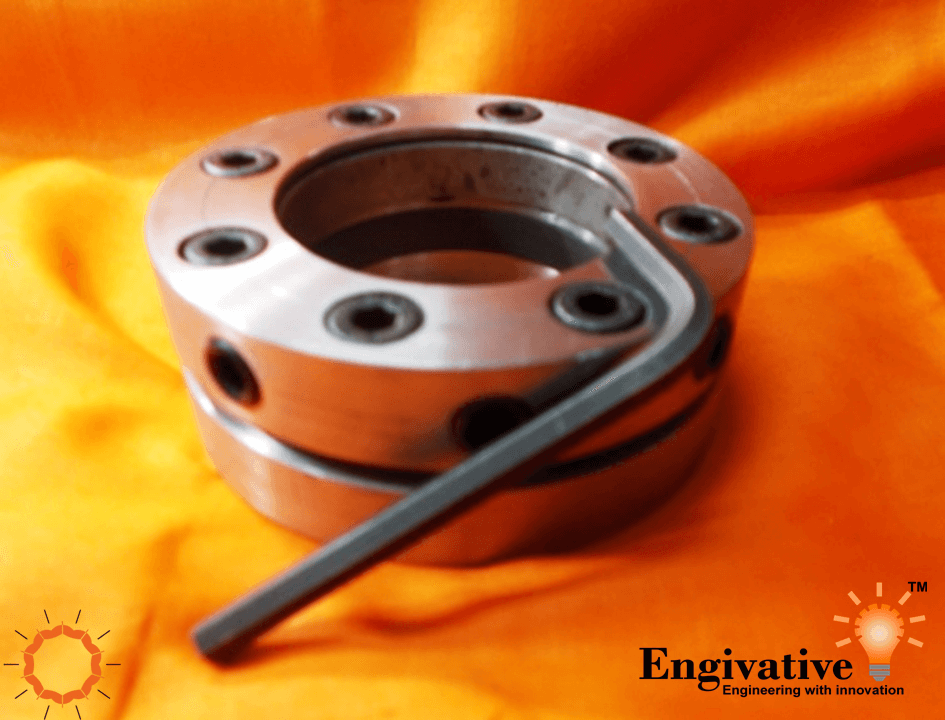

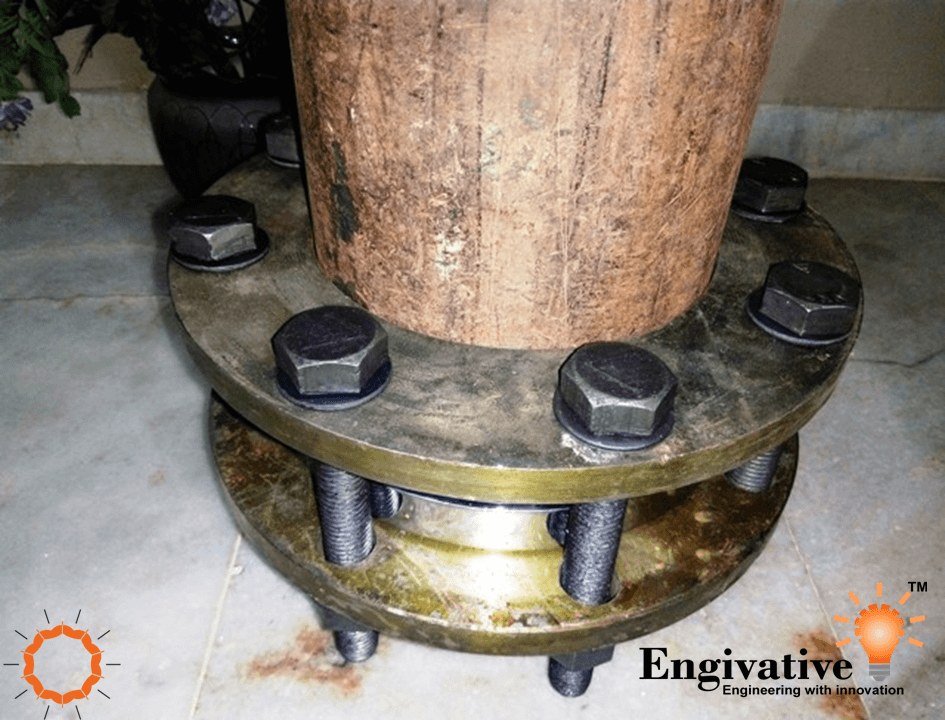

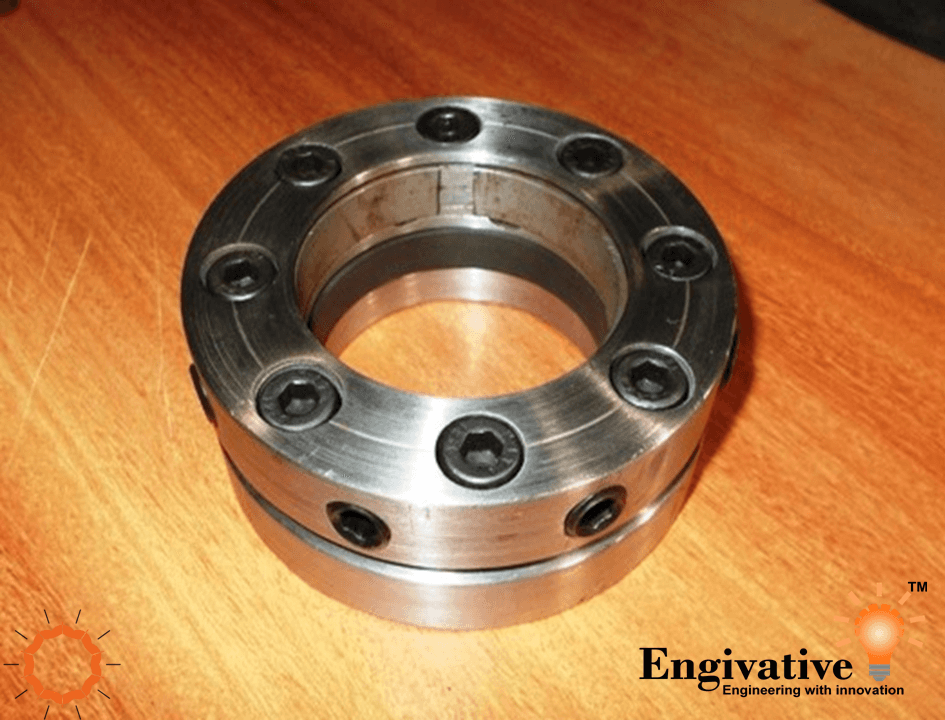

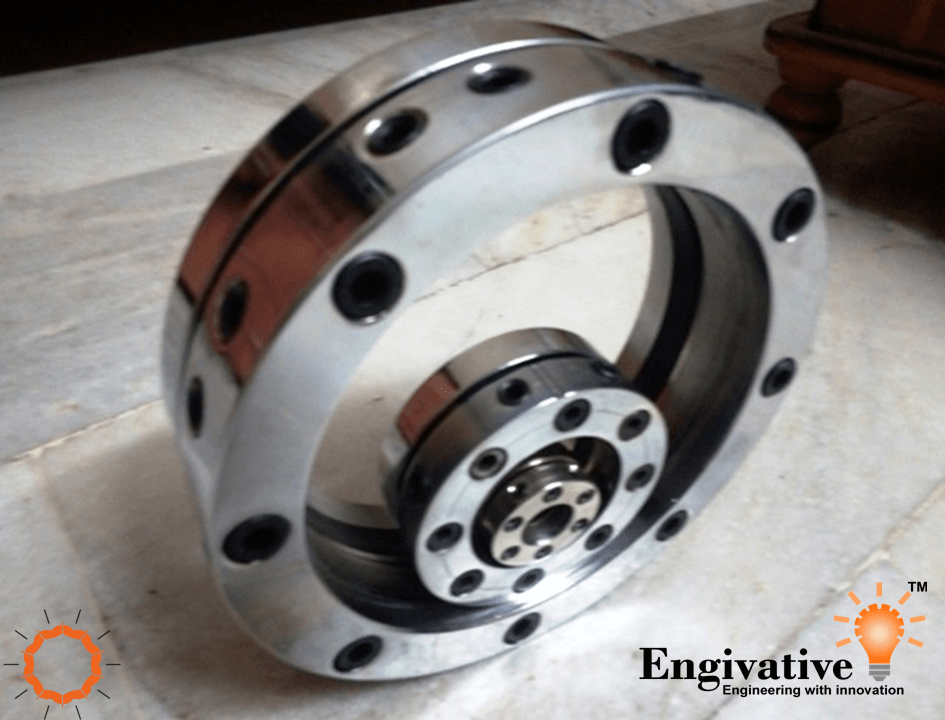

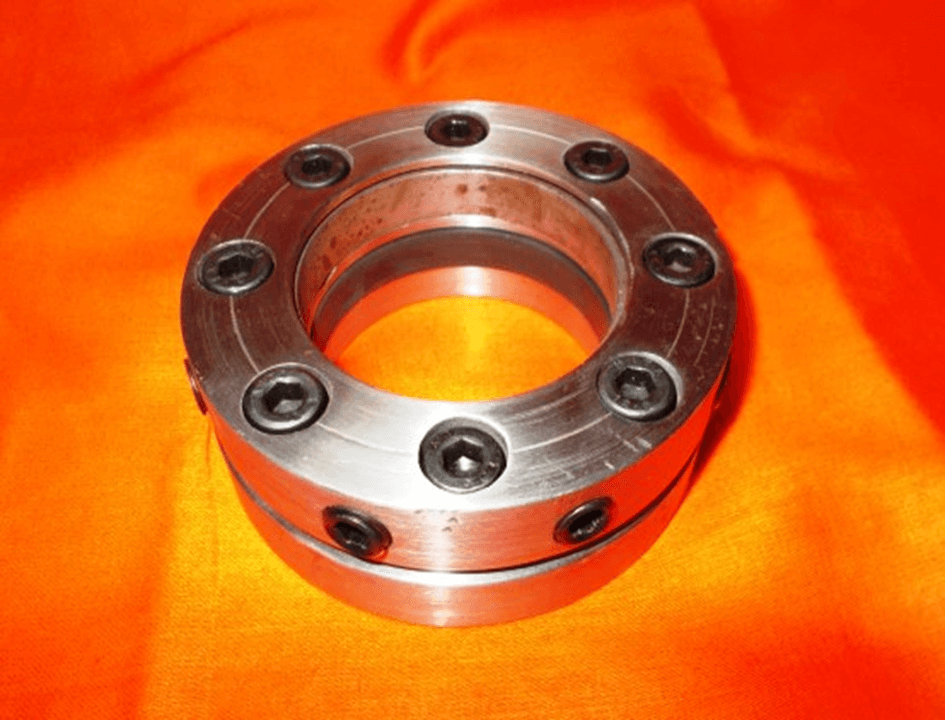

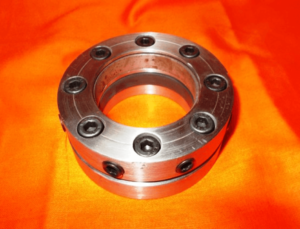

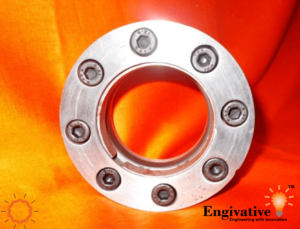

Engivative Bolted Stub End
Flange fitting on Pipe without welding

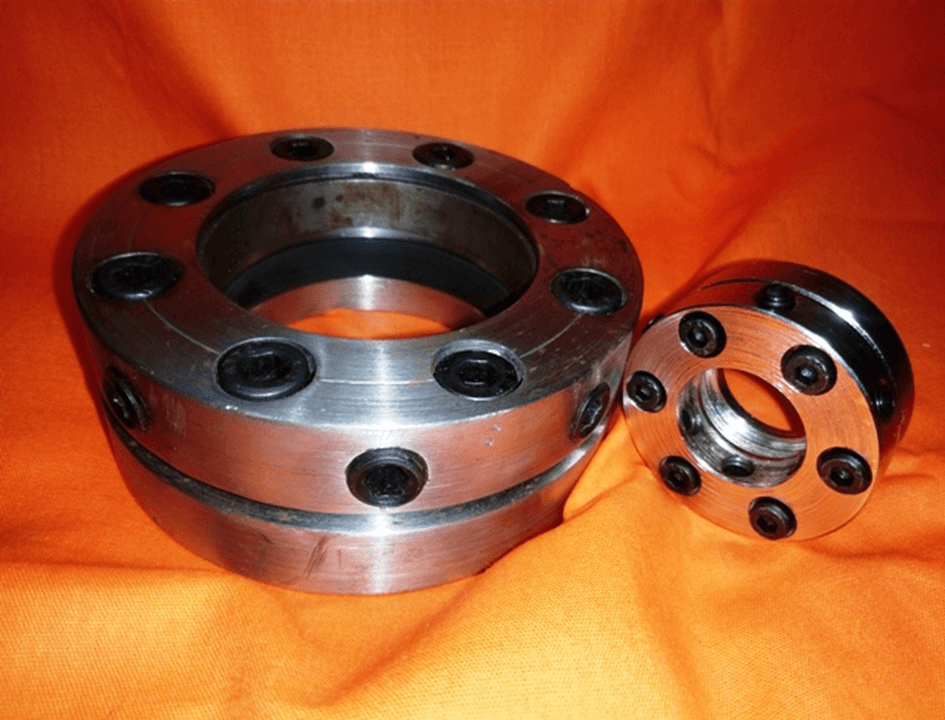

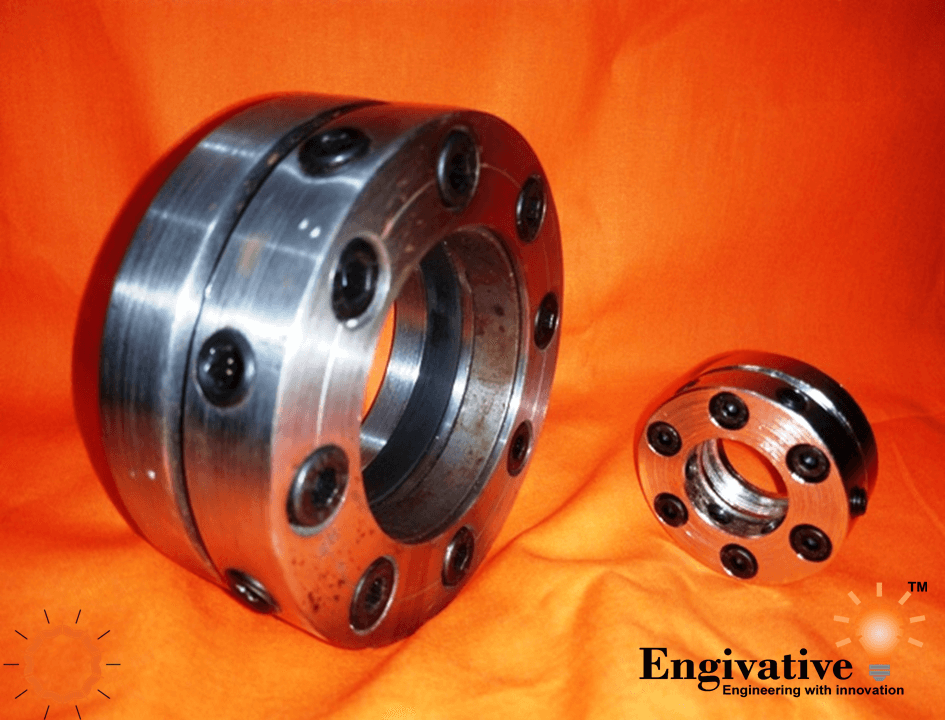

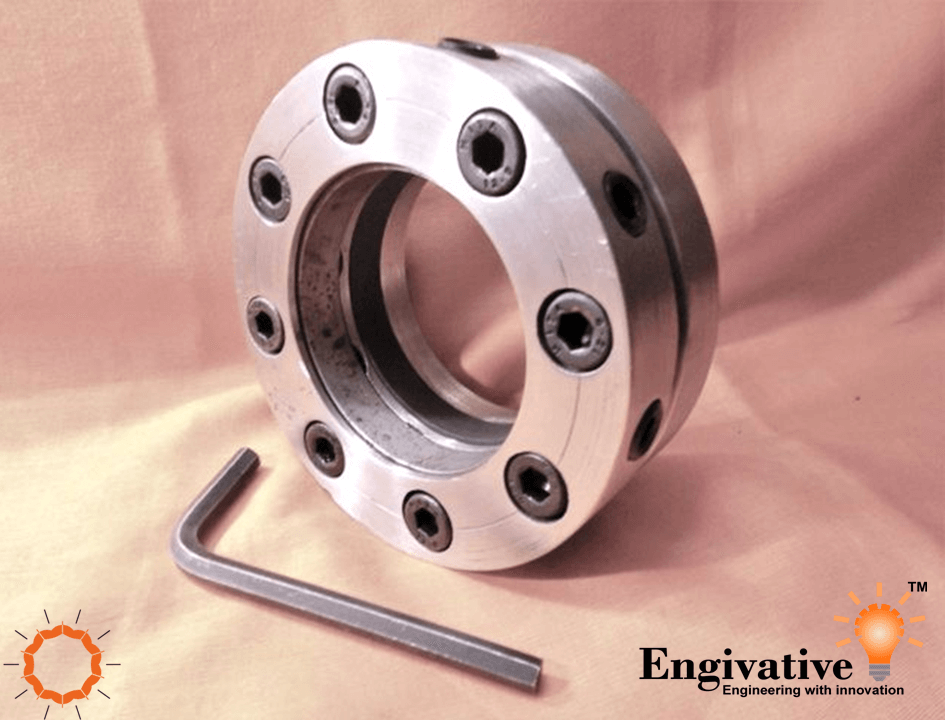

Product Images Gallary
( Click on Image for Large View )
Product Information
Introduction
Principle
Application
Specification
Limitation
Introduction
This is an emergency and routine pipe flange making device. No need to weld, just by tightening on pipe, it makes stub end which can withstand piping intyernal pressure as well as stability.
Principle
Pipe flanges are having two functions. One is sealing and another is holding flange on pipe. We separated both functions by its conceptual design.
Application
- Provide pipe flanging collar ( Stub end ) without welding & pressure shrinkage.
- Suitable for any process liquid up to 10 kg/sq.cm working pressure with working temperature up to 200 degree centigrade.
- Made to match dimension suitable for any common flange standard.
- Simple & speedy to install within few minutes by common tools.
- Best suitable for chemical process plant piping maintenance / modification.
- Available in different process suitable Metals & elastomers.
- Available size ½” (15 NB) to 6” (150 NB). Bigger sizes may be available on specific application.
- Applied for patent & Design Registration
Specification
This product is available in different materials of construction and sizes. We manufacture it from 1/2″ ( 15 NB ) to 6″ ( 150 NB ). Pressure rating available is up to 10 kg/sq.cm working.
Limitation
This product is not suitable for use in following applications.
- High temperature more than 200 Degree Centigrades.
- For Piping having very high pressure more than 20 kg/sq.cm.
- For piping subjected to very high tension and vibration during operation.
