Engivative Barrel Liquid Level Indicator
Innovation in barrel Level Measurement
Product Images Gallary
( Click on Image for Large View )
Product Information

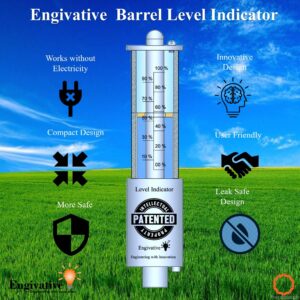

This is a special kind of Engivative barrel liquid level indicator. This product is patented.. It gives liquid level indication for different kinds of liquid storage with special features which are not commonly available in other designs. The main feature is compact design, no electricity needed, no holes in liquid filled surfaces and many more.
It works on concept of volumetric displacement of liquid and air for measurement of liquid level for 200 liter barrels.

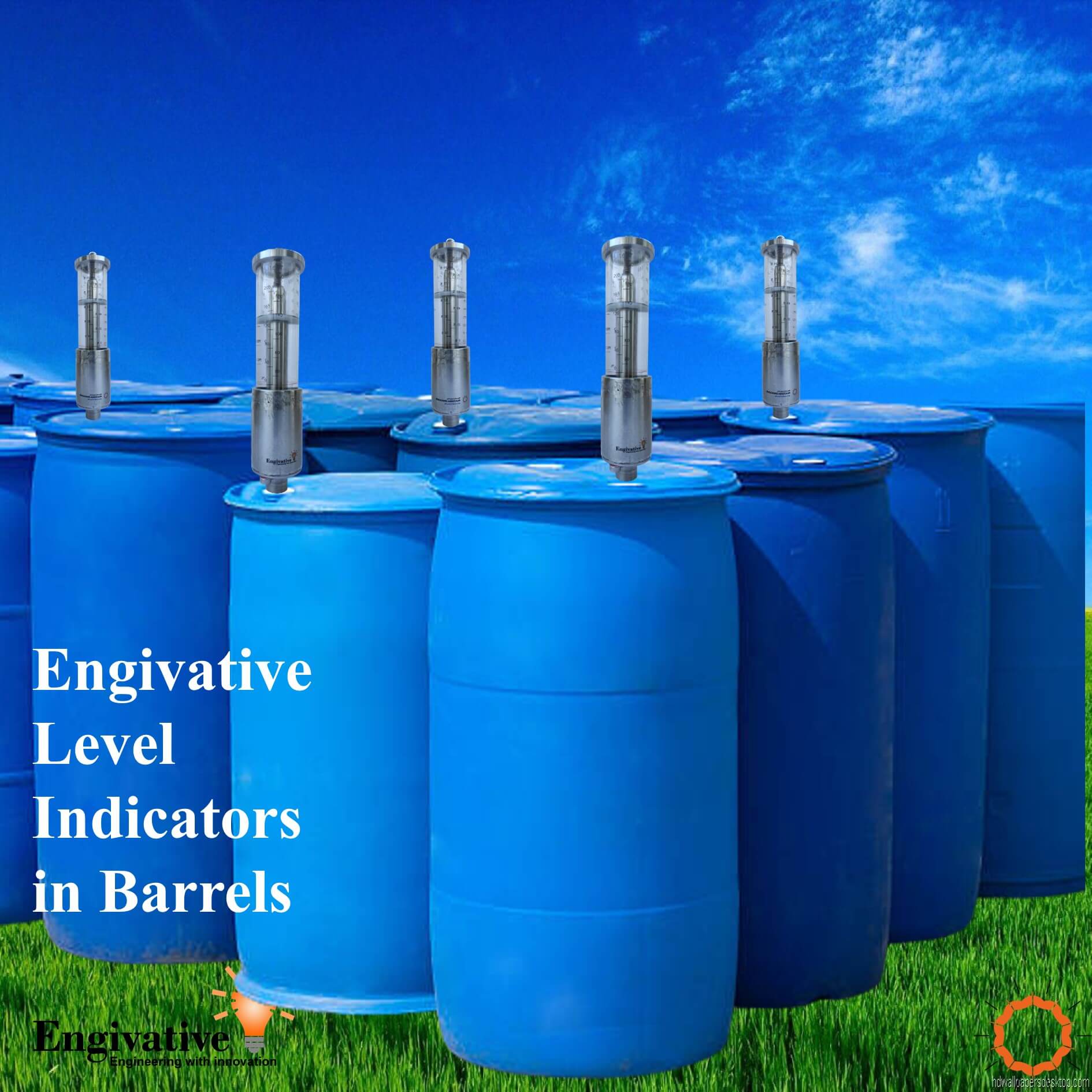

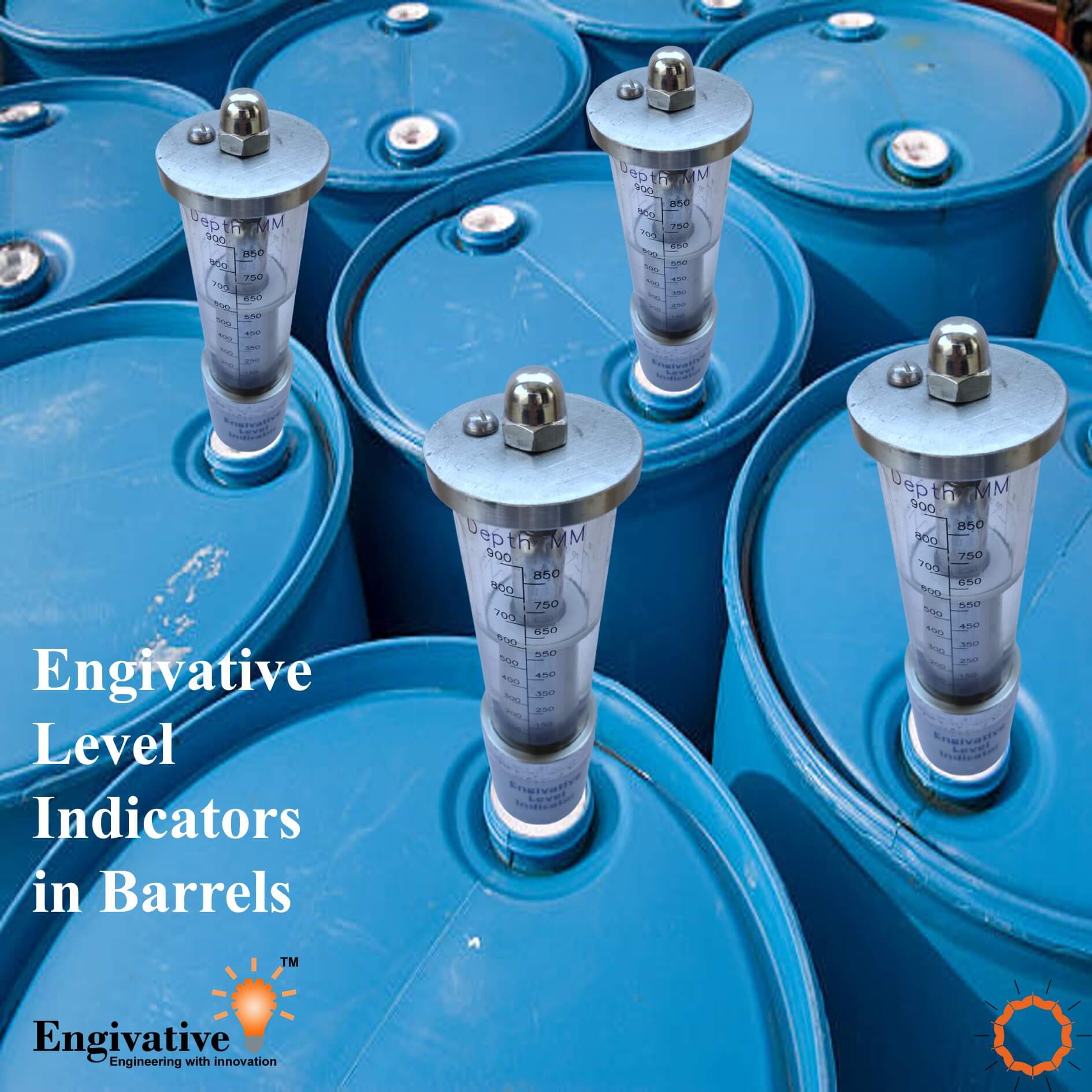

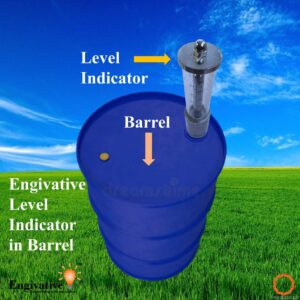

This product specially designed for barrel’s level measurement. We may say its suitability for following applications.
- Measuring barrel liquid content in stores.
- Inventory management of stored liquid in barrels.
- Audit checking for barrel liquid content.
- Level measurement with consumption of barrel content.
- Level monitoring for safety of barrel emptying pump with avoiding time and power wastage.
- Oil sump level indication
- Equally best suitable for water, chemicals and oil based barrel liquid level monitoring.
- Suitable for food grade editable barrel level measurement.
- New liquid level measurement technology.
- Compact display unit for higher depth of tank.
- Indirect level view, hence more safe for hazards chemicals.
- More safe design because no holes in liquid filled surface for level measurement.
- Works without electricity, hence safe and more reliable for long duration level measurement.
- No corrosion to display unit because of chemically compatible deep pipe only remains in contact with liquid.
- No insulation needed for hot or cold application because display unit remains untouched from liquid.
- Long life due to no moving parts and no need of any utility.
- Easy Calibration and re calibration.
- Fit and forget design due to simple, safe and strong construction with more reliability.
This level indicating device is best suitable for above ground, underground and floor mounted tanks, barrels and different kinds of liquid storage. It works well for pressure vessels and non pressure vessels. Best suitable for level indication of tanks from range of 300 mm to 10000 mm depth.

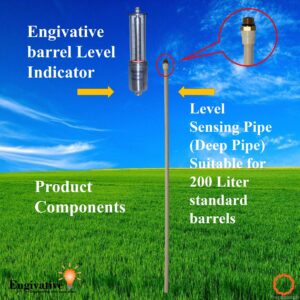

- This device is specially designed for measuring barrel liquid level.

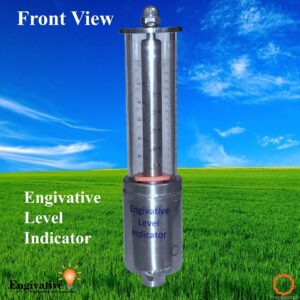

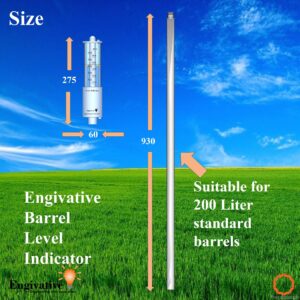

- Level indicator total height is 275 mm with 60 mm diameter.

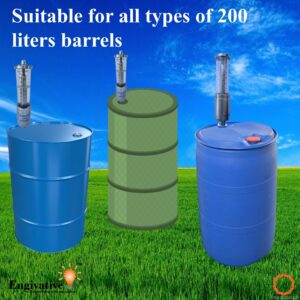

- The deep pipe is 930 mm suitable for maximum capacity of 230 liter barrel.
- Total height of device when assembled with deep pipe is 1200 mm.
- Weight of unit in empty condition is

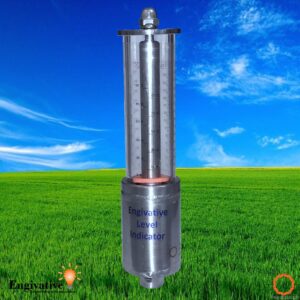

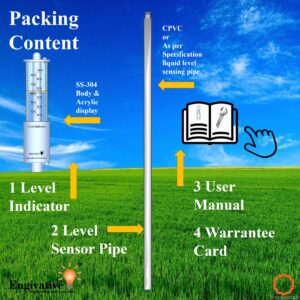

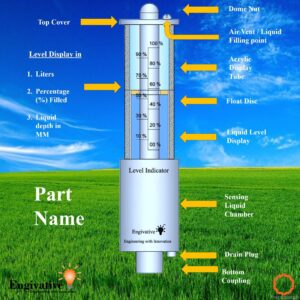

- MOC of Level indicator is SS-304 body, acrylic display tube and rubber O rings.
- Deep pipe MOC is CPVC pipe as basic standard.
- For specific application, deep pipe may be available in stainless steel or any other compatible metal or non metal.
- level sensing liquid may be used water, glycerin, oil or any compatible chemical.
- For any other specific barrel application tailor made units may be available.

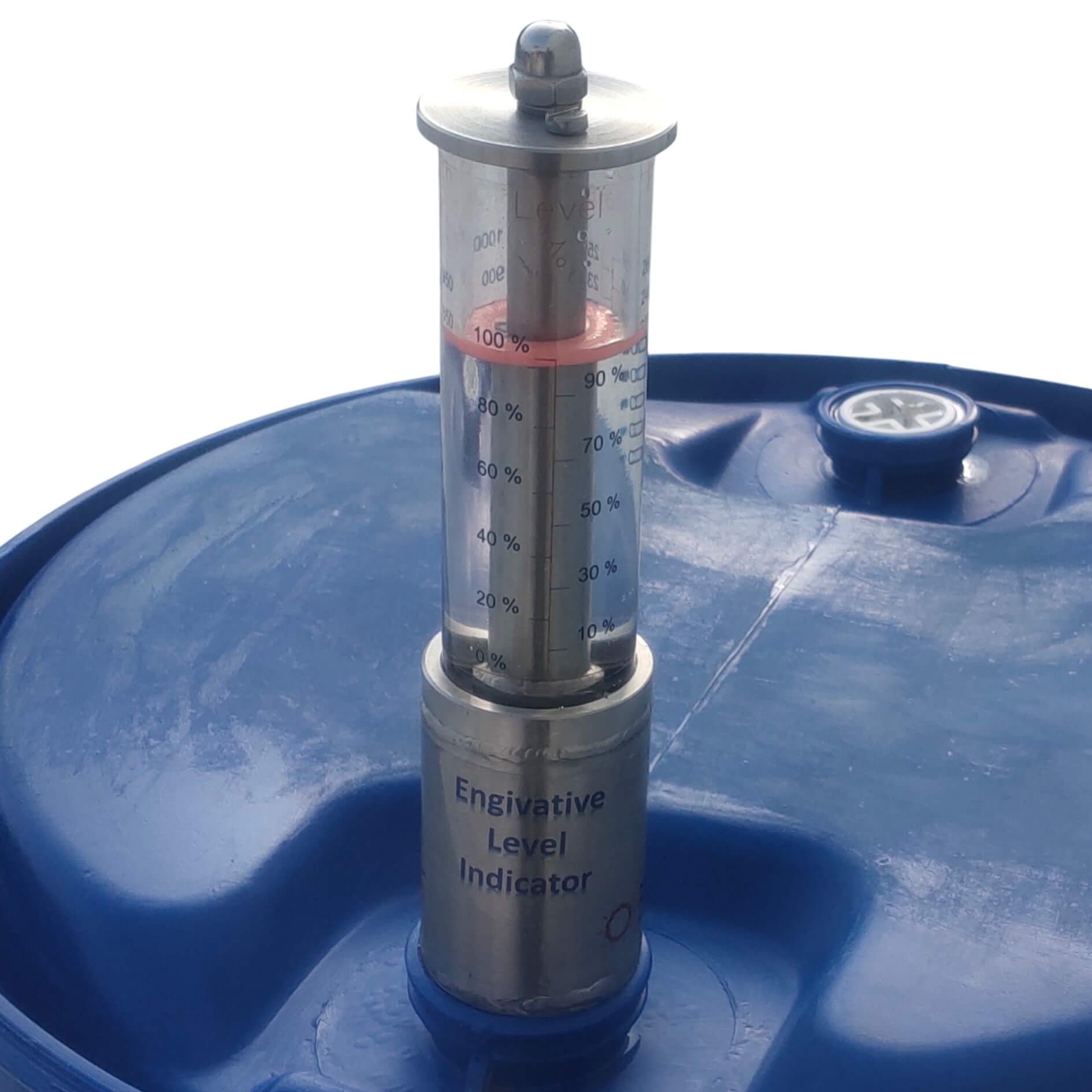

- Standard display scale will be percentage filled and depth of liquid in MM.
- On request special calibration sticker may be available to measure barrel content in volumetric units such as liters.
This product is not suitable for use in following applications.
- High temperature volatile liquids.
- For liquid which may crystalline or solidify in barrel or deep pipe.
